Getting Started with Spark

Overview

This getting started gives some clues to start working with Spark.

Prerequisites

The Hadoop Component must be installed.

Metadata creation

To start working with Spark in Semarchy xDI, the first step is to create the Spark Metadata.

Launch the Metadata creation wizard and create a Spark Metadata.

Below, a common example of a Spark Metadata.

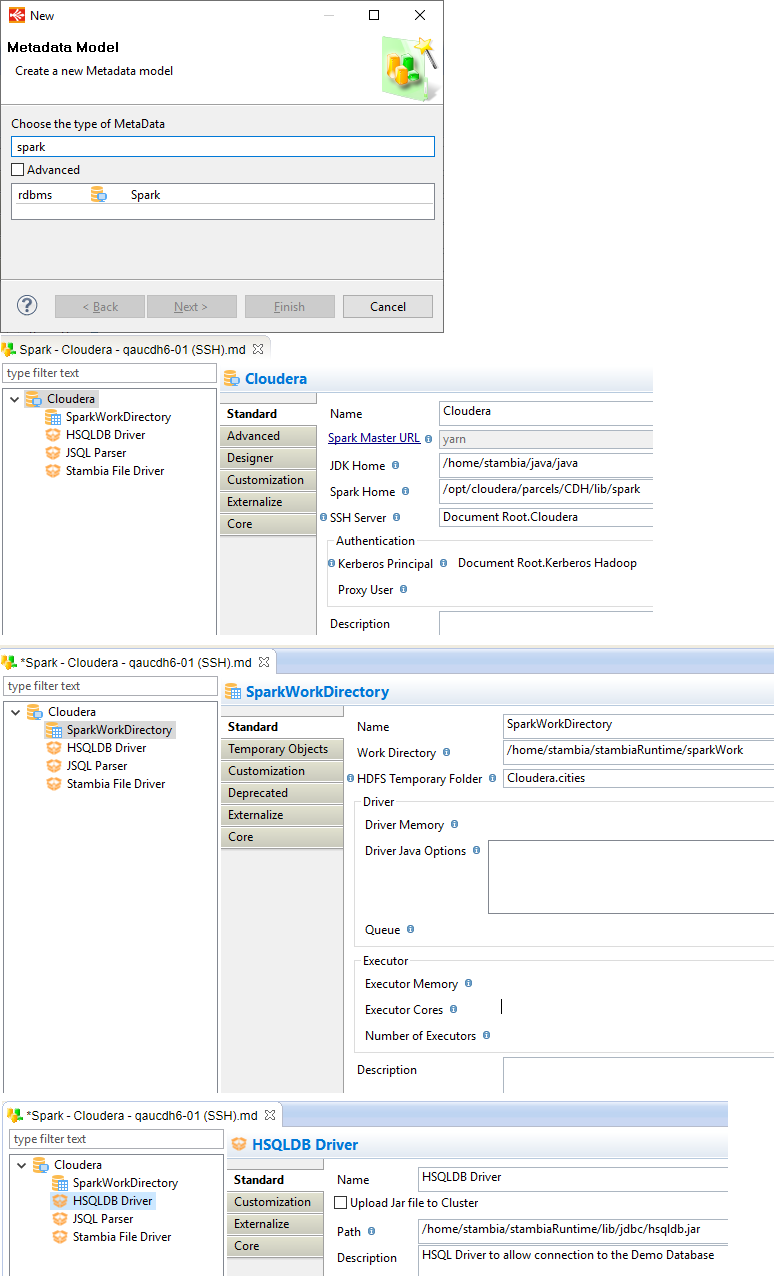

getting started spark metadata overview

Metadata configuration

This section explains how to configure Spark Metadata properly, according to your environments and requirements.

It describes also the existing properties for each node of the Spark Metadata.

Root node properties

The following properties are available on the Spark Metadata root node.

Property Mandatory Description Example

Spark Master URL

Yes

Master URL used to connect to Spark

spark://<host>:<port>

JDK Home

Yes

Full path to a JDK that will be available on the server that compiles the classes. This will be used as follows: <JDK Home>/bin/javac

/opt/java

Spark Home

Yes

Home of the spark installation. This will be used to retrieve <Spark Home>/bin/spark-submit as well as <Spark Home>/jars/*.jar

/opt/spark

SSH Server

No

Drag and drop a SSH Server on this field when Spark cannot be accessed locally by the Runtime

Kerberos Principal

No

Drag and drop a Kerberos Principal on this field when Spark installation is kerberized

Proxy User

No

Spark proxy-user to use to impersonate the client connection. Please refer to the Spark documentation for more information.

Schema node properties

The following properties are available on the Spark Metadata schema node.

Some properties are available only for specific Spark Master URLs.
Property Mandatory Description Example Supported with Spark Master URL

Work Directory

Yes

Full path to the directory in which the Runtime will compile the Jar files. When SSH is used, this must be a valid path on the SSH Server.

/home/xdi/runtime/sparkWork

all

HDFS Temporary Folder

No

Drag and drop a HDFS Folder on this field.

This will be used by some templates when needed to store temporary data in HDFS. This setting can be ignored if none of the templates require temporary HDFS data

all

Driver Memory

No

Amount of memory to allocate to the Spark Driver Program. Please refer to the Spark documentation for more information.

2g

all

Driver Java Options

No

Specify any additional Java Options to pass when launching the driver program. Please refer to the Spark documentation for more information.

--conf "spark.driver.extraJavaOptions=-Dlog4j.configuration=log4j.xml -Dconfig.file=app.conf"

all

Queue

No

Name of the Yarn queue to use when submitting the application.

YARN only

Executor Memory

No

Amount of memory to use per executor process. Please refer to the Spark documentation for more information.

4g

all

Executor Cores

No

The number of cores to use on each executor. Please refer to the Spark documentation for more information.

1

Spark Only

Number of Executors

No

Number of executors requested to Yarn.

1

YARN only

Total Executor Cores

No

The total number of cores that Spark can use on the cluster. Please refer to the Spark documentation for more information.

1

JAR File node properties

The following properties are available on the Spark Metadata jar file node.

Property Mandatory Description Example

Upload Jar file to Cluster

No

When SSH is used, this option allows to upload a local JAR File to the Cluster instead of referencing an already existing JAR File on this Cluster

Path

Yes

Full Path to the Jar file on the Spark server

/home/xdi/runtime/lib/jdbc/hsqldb.jar

Tips and tricks

You can find below some of the main properties to have in mind for Spark Metadata.

Spark Master URL

It defines how Semarchy xDI will connect to Spark.

You have many ways to set it: kubernates, local, yarn, spark, mesos, …​

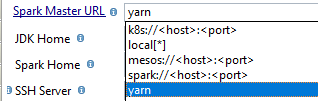

getting started spark metadata prop spark master url

JDK and Spark Home

It defines the paths to corresponding directories, relative to the cluster you are working on.

getting started spark metadata prop homes

Some properties require to select or drag and drop a Metadata Link.

This allows to define the connection properties to SSH, Kerberos, HDFS, and more…​

getting started spark metadata prop related metadata

Spark Properties

You can define other Spark properties, which correspond to the properties described in Spark Documentation.

Additional Java third-party libraries

You can define and refer to extra Java third-party libraries.

This is used to define the third-party libraries required for the Spark job.

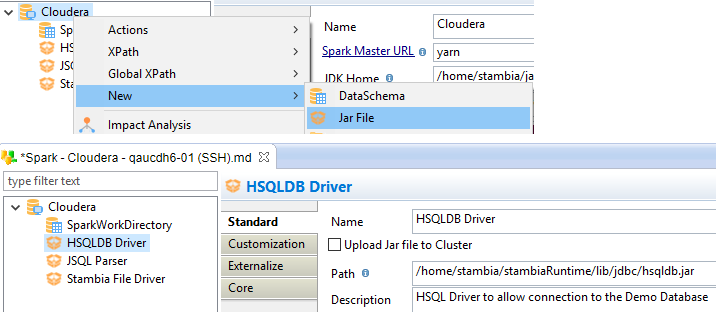

getting started spark metadata additional jar

Additional Custom Properties

You can add custom additional properties.

For this add a Property node for each of them, under the root or schema nodes.

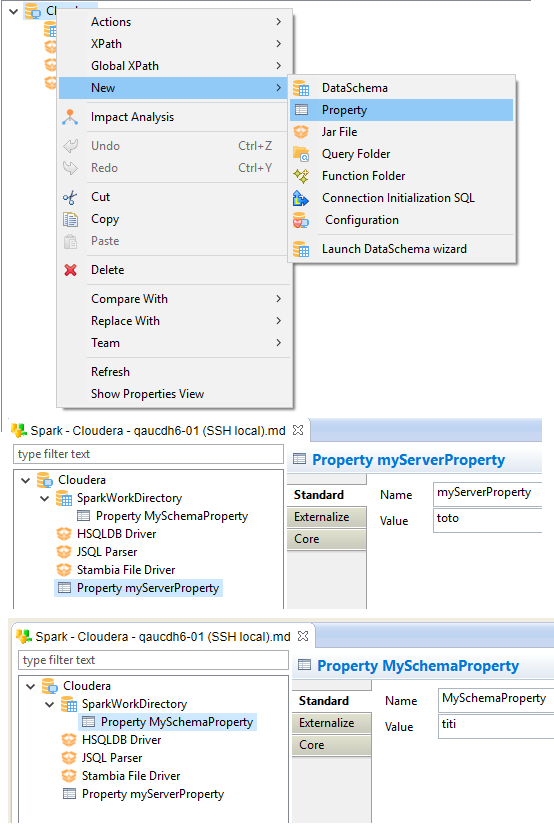

getting started spark metadata additional property

Submit and Compilation Methods

There are two ways to submit Spark jobs in Semarchy xDI.

Both are using the "Spark submit" command to run jobs, but with difference regarding Java compilation.

Depending on your environment and preference, you can choose your preferred method.

Local method

With the local method, the Spark Java code generated by Semarchy xDI is compiled locally by the Runtime.

Then when the compilation is done, the generated JARs and dependencies are sent to Spark cluster and executed with the "Spark submit" command.

Below, an overview of this architecture.

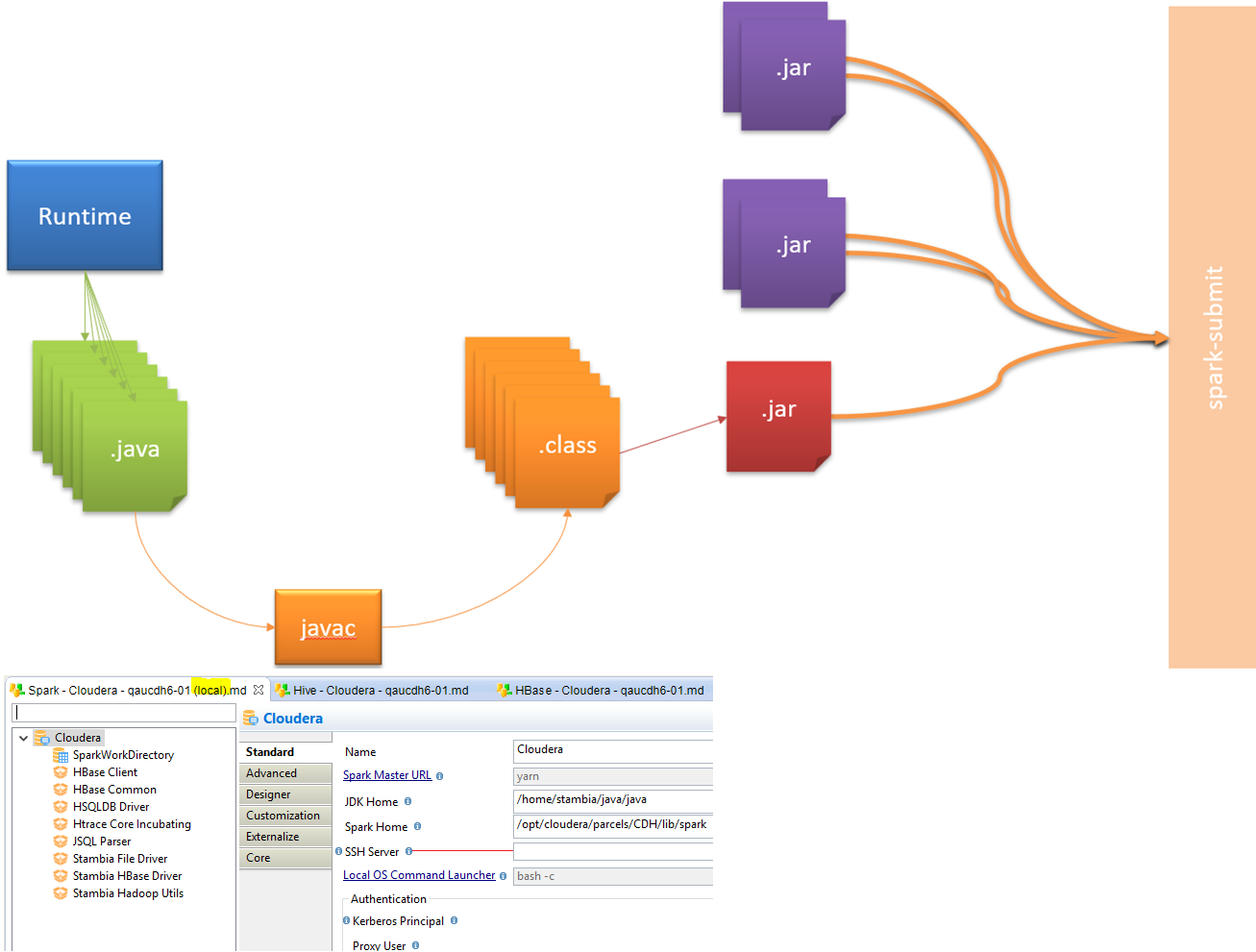

getting started spark method local

Local method is the default method used, when no SSH Server is defined in Spark Metadata.

Remote method (SSH)

With the remote method, the Spark Java code generated by Semarchy xDI is sent to Spark cluster with SSH.

Then, the Java code is compiled directly on Spark cluster, before being execute through "Spark submit" command.

Below, an overview of this architecture

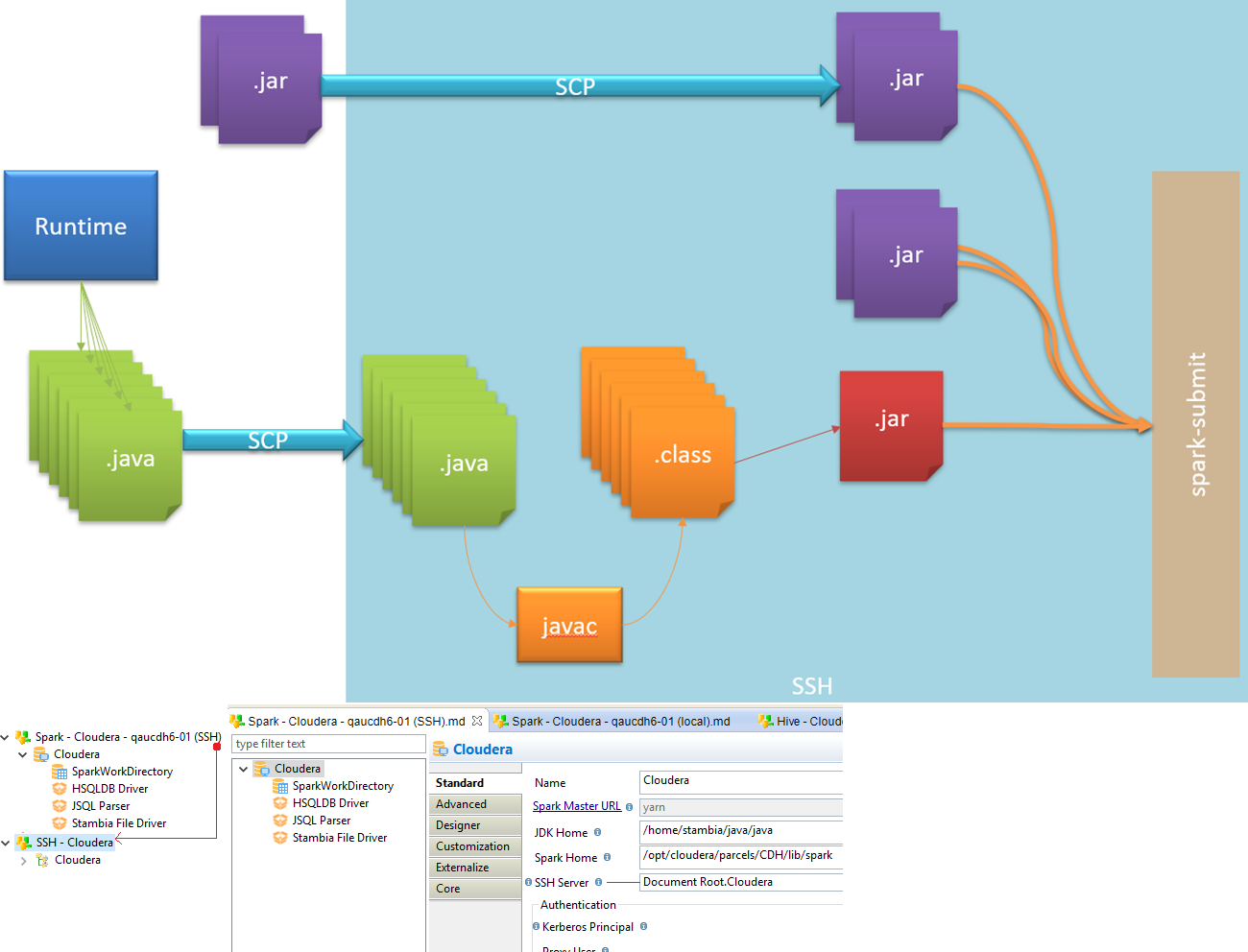

getting started spark method remote

To use the remote method, define an SSH Metadata Link in the Spark Metadata, in the corresponding property.

Create your first Mappings

Spark can be used in many ways inside Semarchy xDI.

Spark Process Tools are available in the Process Palette, and Spark Templates in your Mappings.

Common Template Parameters

Below, a non-exhaustive list of common Spark Template parameters.

Parameter Description

Clean Temporary Objects

If true, the temporary objects created during integration are removed at the end of the process.

Coalesce Count

If not empty, specifies the number of partitions resulting of a coalesce() operation on the Dataset.

Compile

When this option is set to true, the application is compiled and a JAR File is created.

Debug

When this option is set to true, additional information about the Datasets is written to the standard output.

Execution Unit

When multiple templates share the same Execution Unit name, only one of them will submit the JAR file embedding the Java programs for all other templates.

Persist Storage Level

Allows to select a persistence of the main Dataset.

Repartition Count

If not empty, specifies the number of partitions resulting of a repartition() operation on the main Dataset.

Repartition Method

Specifies how the data is to distributed

Use Distinct

If true, duplicate records will be filtered out.

Submit

When this option is set to true, the JAR file for this Execution Unit is executed using a spark-submit command.

Work Folder

Specify the location where the Java files are to be generated locally before being sent to the compile directory specified in the Spark metadata.

Use Spark through Stages

The first way to use Spark in Semarchy xDI is through Mapping Stages.

You can drag and drop in a Mapping a Spark Metadata schema node and use it as a Mapping Stage.

Depending on your requirements and preference, you can use the stage to use Spark SQL expressions or Java expressions.

This is done by choosing the appropriate stage Template in your Mapping.

Spark SQL

Mapping stages using SQL expressions are common in Semarchy xDI.

To use Spark SQL, choose the appropriate Template and define your expressions.

Below, an example.

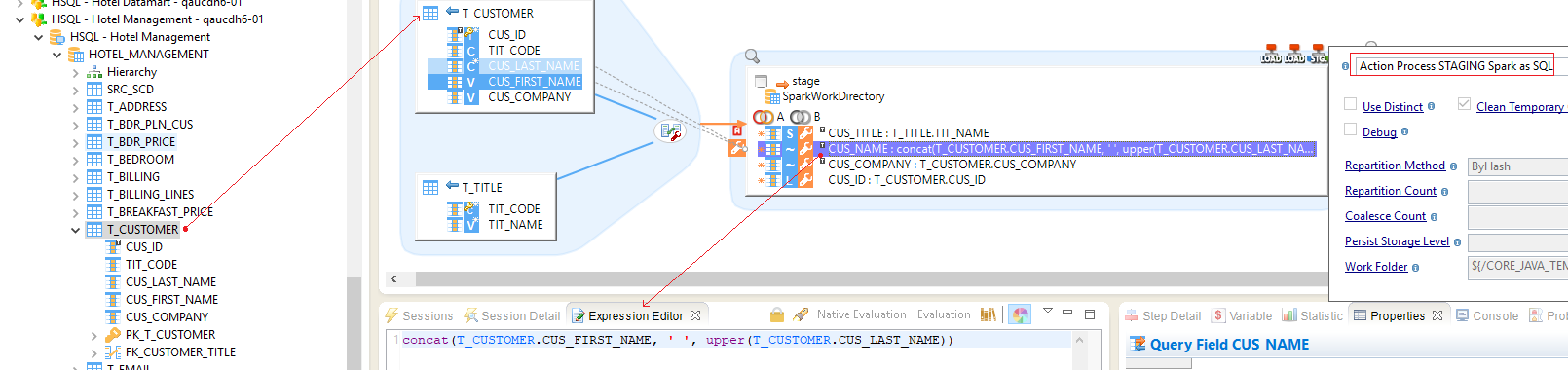

getting started spark mapping stage sql

On this example, there are two tables as source, and a Spark Stage configured with Spark SQL Template. The Template used is STAGING Spark as SQL

Spark Java

To use Spark Java expressions, choose the appropriate Template and define your expressions as Java code.

Spark Map

The map Spark java mode means that every 1 line in source table, there will also be 1 line at staging (1-to-1 correspondence).

The code inside "Expression Editor" is written in Java.

Below, an example.

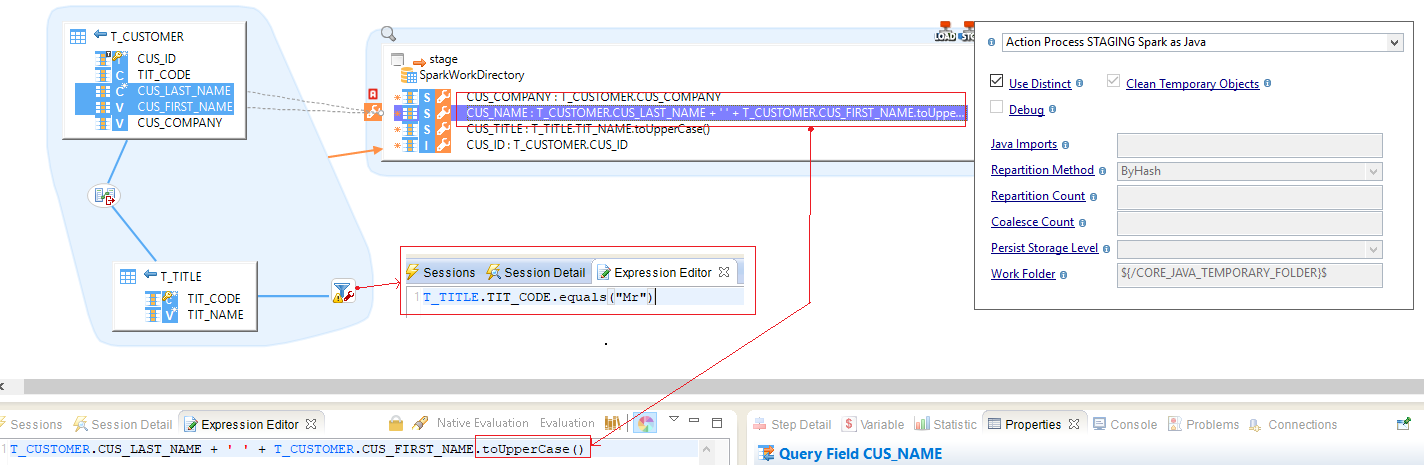

getting started spark mapping stage java map

On this example, there are two tables as source, and a Spark Stage configured with Spark Java Template. The Template used is STAGING Spark as Java
If you have only one line of Java code in the Expression Editor, you can omit the "return" key-word and the semicolon end instruction.

Flatmap

The Flatmap Spark java mode means that for every 1 line in source table, you can have many lines in staging step (1-to-N correspondence).

The code inside "Expression Editor" is written in Java.

You have to return an "Iterator" interface in the mapping step. So you can use use your own objects if they implements the "Iterator" interface.

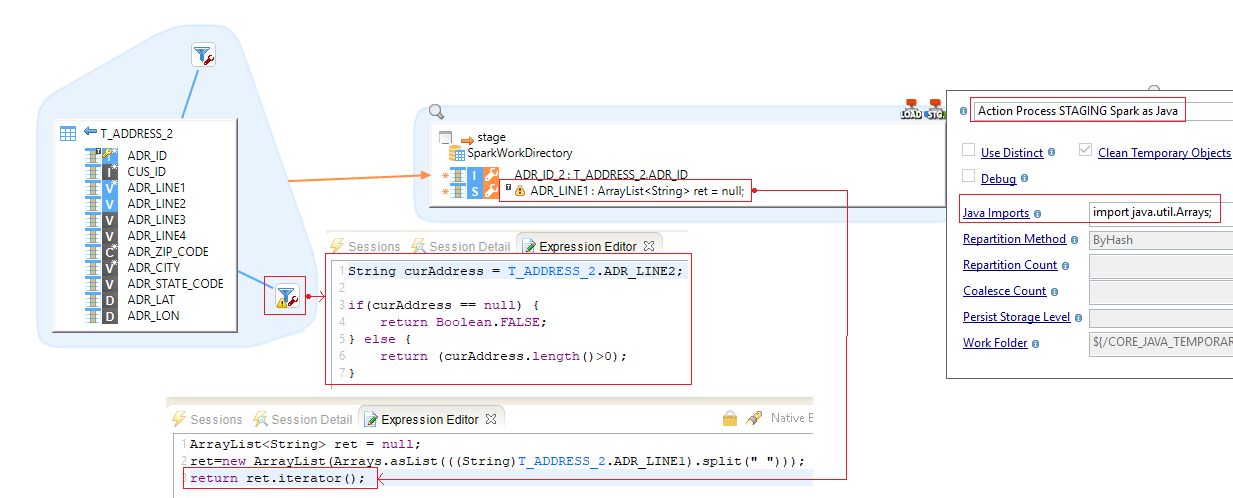

getting started spark mapping stage java flatmap

Manipulate data from remote technologies

Spark Component in Semarchy xDI allows to extract or send data from remote technologies through Spark.

You can manipulate data located in files, Hive, Hbase, and more…​ through Spark

To do this:

  1. Create a Mapping

  2. Define your remote source and target technologies

  3. Provide a Spark Stage between them

  4. Choose the appropriate Spark Template

Text files

In this example, we load two text files and merge them into one, through Spark.

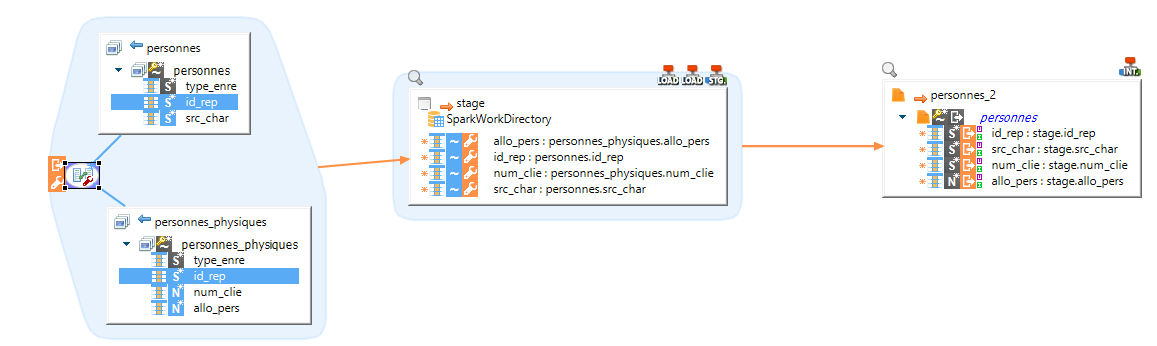

getting started spark mapping example file 1

There are two source files, joined by a field. The final target is another file, which is supposed to contained both source file information

The load steps are using LOAD Hdfs File to Spark Template.

The Integration step is using the INTEGRATION Spark to Hdfs File Template.

Hive table

Hive as Source

In this example, we load an Hive table into an SQL table.

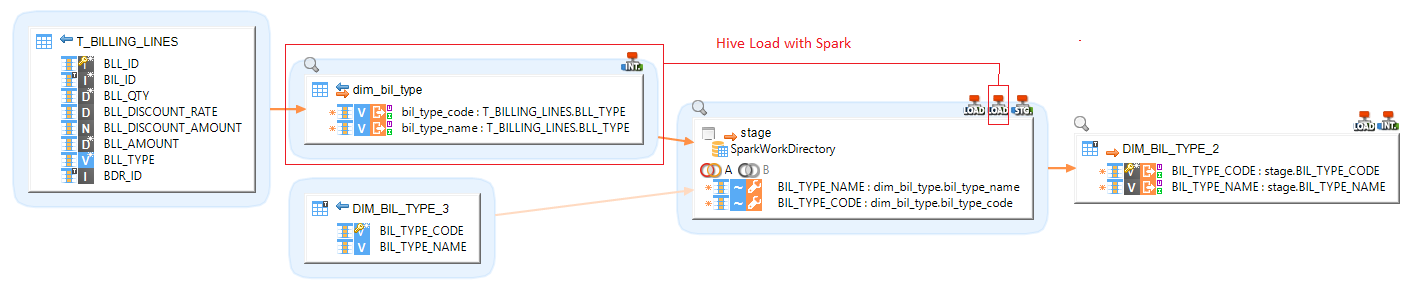

getting started spark mapping example hive source

One of the sources is an Hive table: dim_bil_type. The final target table is an SQL table.

The load step is using the LOAD Hive to Spark Template.

Hive as Target

In this example, we load two SQL tables and merge them into an Hive table.

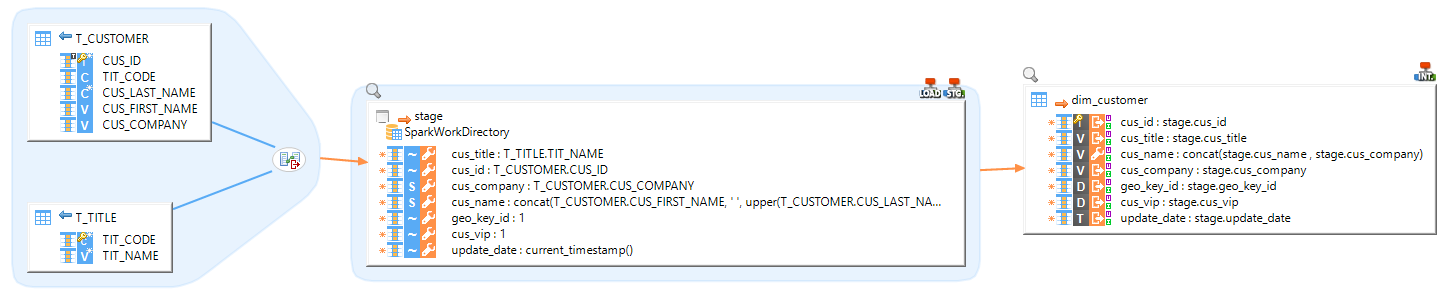

getting started spark mapping example hive target 1

The sources are two SQL tables, joined by a column. The final target Target is an Hive table.

The load step is using LOAD Rdbms to Spark Template.

The integration step is using INTEGRATION Spark to Hive Template.

You can also load data to a more classical SQL (such as Oracle or Microsoft SQL Server) with the generic INTEGRATION Spark to Rdbms Template.

HBase table

In this example, we load an HBase table into an SQL table.

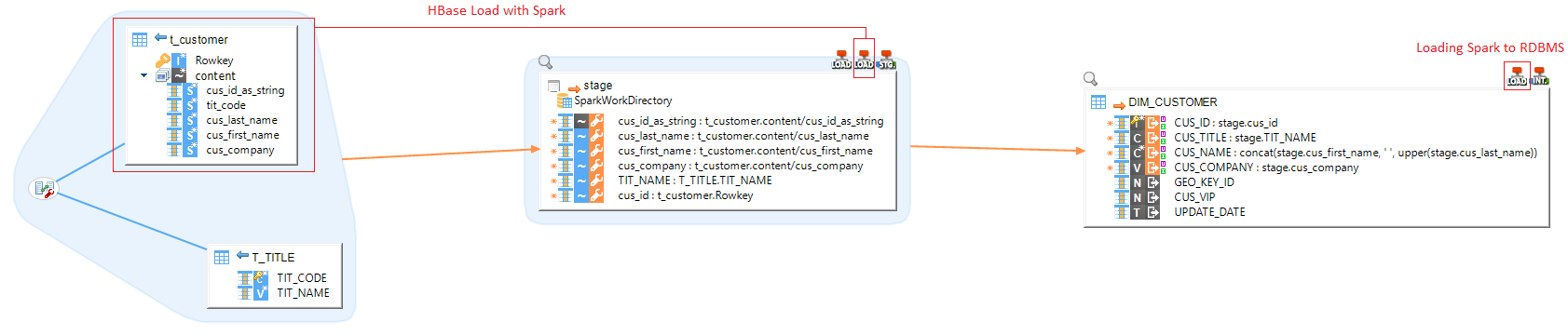

getting started spark mapping example hbase

One of the sources is an HBase table. The final target table is an SQL table. The load steps are using LOAD HBase to Spark and LOAD Spark to Rdbms Templates.

Additional Notes

Spark often works with HDFS data.

You can link files Metadata to an HDFS Metadata, as in the below example.

This indicates to Semarchy xDI that the files are in HDFS. Spark Templates will therefore automatically adapt.

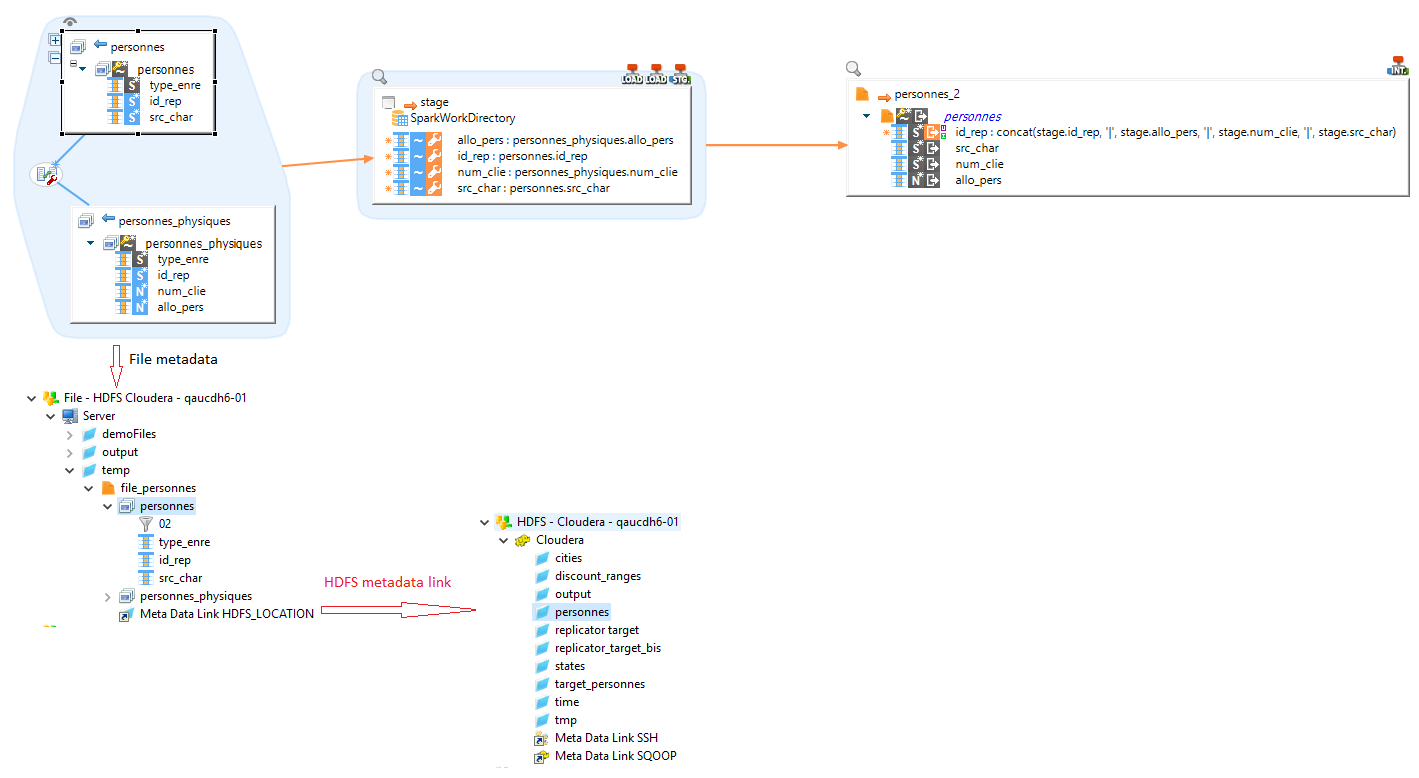

getting started spark mapping example hdfs metadata link

In this example, we use "personnes" file as source.

This source is a File Metadata, which has been linked to an HDFS Metadata.

The Metadata Link must be named HDFS_LOCATION
