Getting Started with Sqoop

Overview

This getting started gives some clues to start working with Sqoop in Semarchy xDI

Sqoop is a tool used to transfer data between HDFS and relational databases having a JDBC driver.

Semarchy xDI provide tools for both Sqoop 1 and Sqoop 2 versions, which are different in term of usage.

Prerequistes

Sqoop is using JDBC drivers to transfer data.

Therefore, the JDBC driver corresponding to the technology you want to import or export data from must be installed on the Sqoop server.

Sqoop Metadata

Create the Metadata

Create first the Sqoop Metadata, as usual, by selecting the Sqoop technology in the Metadata Creation Wizard.

Choose a name for this Metadata and go to next step.

Configure the Metadata

Overview

Your freshly created Sqoop Metadata being ready, you can now start configuring the server properties, which will define how to work with Sqoop.

Below is an example of a fully configured Sqoop Metadata.

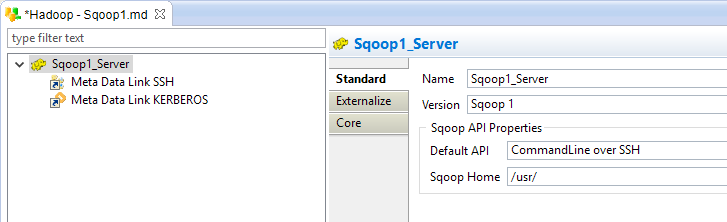

getting started sqoop metadata overview

The available properties are different depending on the Sqoop Version selected.

Common Properties

The following common properties are available:

Property

Description

Name

Logical label (alias) for the server

Version

Sqoop version to be used:

  • Sqoop1 version uses command line tools to perform the operations.

  • Sqoop2 version uses REST Web Services to perform the operations

Sqoop 1 Properties

Property

Description

Examples

Default API

The API to use by default with the Sqoop 1 version:

  • CommandLine: Sqoop commands are launched locally from the current Runtime executing the delivery

  • CommandLine over SSH: Sqoop commands are launched on a remote server through SSH

CommandLine

Sqoop Home

Directory where the Sqoop commands are installed.

This must be set to the folder just before the 'bin' folder.

E.g. If the sqoop-import and sqoop-export utilities are under /usr/bin/, the value should be the following:

/usr/

If you are using the CommandLine over SSH API, you must drag and drop a SSH Metadata Link containing the SSH connection information in the Sqoop Metadata.

Rename it to 'SSH'.

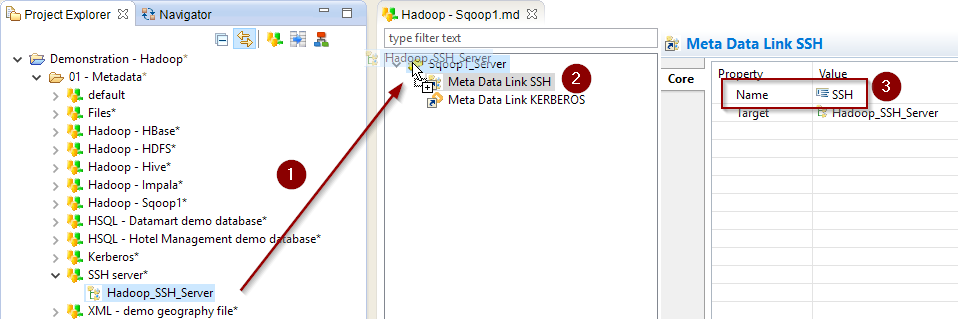

getting started sqoop metadata ssh link

Sqoop 2 Properties

Property

Description

Examples

Default API

The default API to use with the Sqoop 2 version: * REST: The Sqoop2 REST API is used to perform the operations.

REST

URL

Sqoop 2 REST API base URL

Hadoop Configuration Directory

Path to a directory containing Hadoop Configuration Files on the remote server, such as core-site.xml, hdfs-site.xml, …​

It is required when creating a Sqoop2 HDFS Link

/home/cloudera/stambia/conf

Configure the Kerberos Security (optional)

When working with Kerberos secured Hadoop clusters, connections will be protected, and you’ll therefore need to specify in Semarchy xDI the credentials and necessary information to perform the Kerberos connection.

A Kerberos Metadata is available to specify everything required.

  1. Create a new Kerberos Metadata (or use an existing one)

  2. Define inside the Kerberos Principal to use for Sqoop

  3. Drag and drop it in the Sqoop Metadata

  4. Rename the Metadata Link to 'KERBEROS'

Below, an example of those steps:

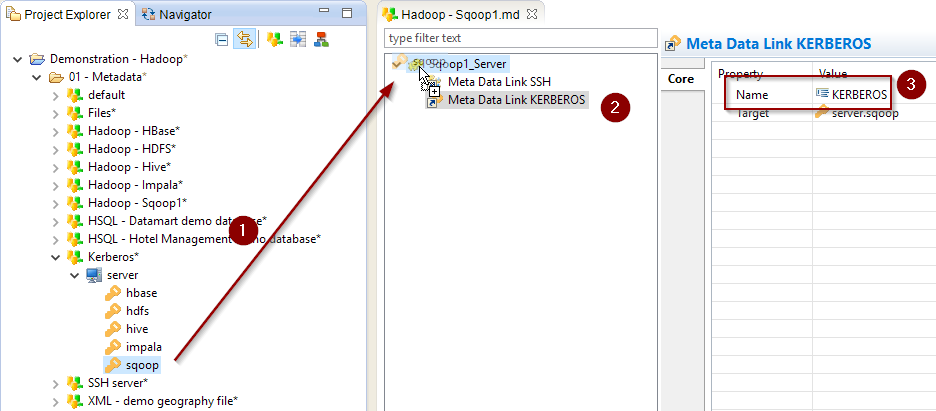

getting started sqoop metadata kerberos link

Kerberos is only supported for the Sqoop 1 version
Refer to Getting Started With Kerberos for more information.

Sqoop usage

Sqoop 1

Semarchy xDI provides two Process Tools to work with Sqoop 1:

Process Tool

Description

TOOL Sqoop Export

Export data from HDFS to any database having a JDBC driver.

TOOL Sqoop Import

Import data from any database having a JDBC driver to HDFS.

To use these Process Tools:

  1. Create a Process

  2. From the Process Palette, add the desired Sqoop Process Tool.

  3. Drag and drop the Sqoop Metadata on it

  4. Drag and drop the HDFS Folder Metadata Link from which you want to import or export data on it

  5. Drag and drop the Database Table Metadata Link from which you want to import or export data on it

For further information, consult the Process Tools parameters description.

Sqoop 2

Sqoop 2 has the same goal as Sqoop 1 but its usage differs.

Please refer to the Sqoop 2 documentation to understand it’s concepts and usage.

Semarchy xDI provides various Process Tools to work with Sqoop 2:

Tool

Description

TOOL Sqoop2 Describe Connectors

Retrieve information about the Sqoop 2 driver and the available connectors.

TOOL Sqoop2 Create Link

Create a Sqoop 2 Link.

TOOL Sqoop2 Monitor Link

Monitor Sqoop 2 Links (enable, disable, delete).

TOOL Sqoop2 Create Job

Create a Sqoop 2 Job.

TOOL Sqoop2 Set Job FROM HDFS

Generate the HDFS From part of a Job.

TOOL Sqoop2 Set Job FROM JDBC

Generate the JDBC From part of a Job.

TOOL Sqoop2 Set Job TO HDFS

Generate the HDFS To part of a Job.

TOOL Sqoop2 Set Job TO JDBC

Generate the JDBC To part of a Job.

TOOL Sqoop2 Monitor Job

Monitor Sqoop 2 Jobs (enable, disable, delete, start, stop, status).

To use these Process Tools:

  1. Create a Process

  2. From the Process Palette, add the desired Sqoop Process Tool.

  3. Define their parameters and Metadata Link accordingly to your requirements

For further information, consult the Process Tools parameters description.

Sample Project

The Hadoop Component ships sample project(s) that contain various examples and use cases.

You can have a look at these projects to find samples and examples describing how to use it.

Refer to Install Components to learn how to import sample projects.
